Ladder beam

20 year ladder beam scaffolding manufacturer in China, custom any ladder beam system you want. Offer 3D model design service. Fast delivery and high quality ensure your project safety and stability. EN 1090 and EN ISO 3834 certified.

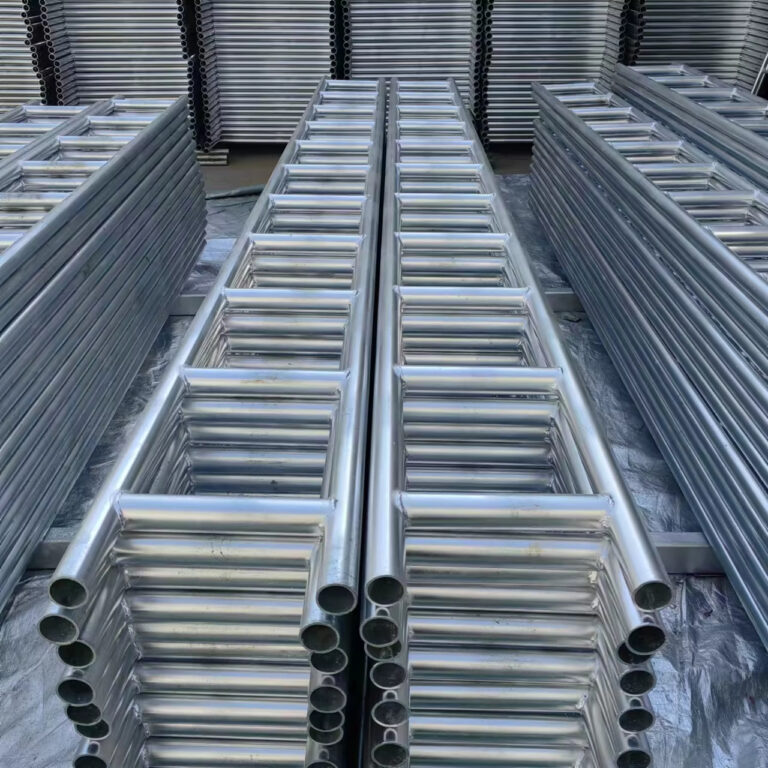

hot dip galvanized scaffold scaffolding steel ladder beam heavy duty 6m 48.3mm

Areas

Ladder Beam Manufacturer in China

If you are looking for ladder beam scaffolding, Rapid is your first choice. We are the top scaffolding manufacturer in China, offer you one-stop scaffolding service. We have over 500 workers and 20 years of experience to support your orders.

We provide engineering support for your project. Our team has 20 expert engineering technicians that can give you digital ladder beam scaffolding solution to fit your project perfectly. With our support, you will find our ladder beam scaffolding is easy to connect and safe to use.

We have a 70,000m² factory, with our own testing laboratory and a showroom with all types of scaffolding products. We ensure your scaffold quality from the beginning. Welcome to visit our factory, 80% of customers place orders after visiting our factory.

Types of Ladder Beam

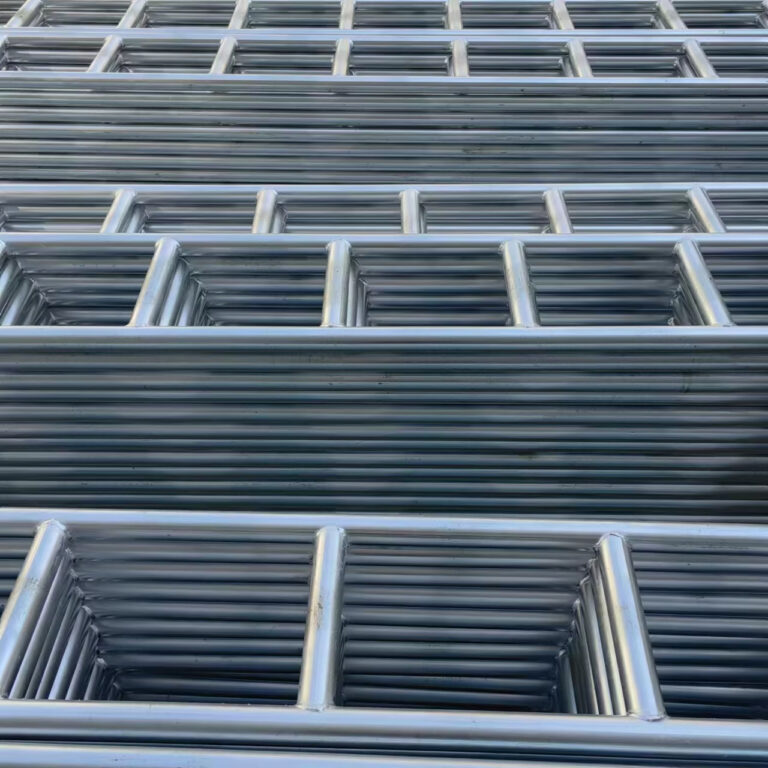

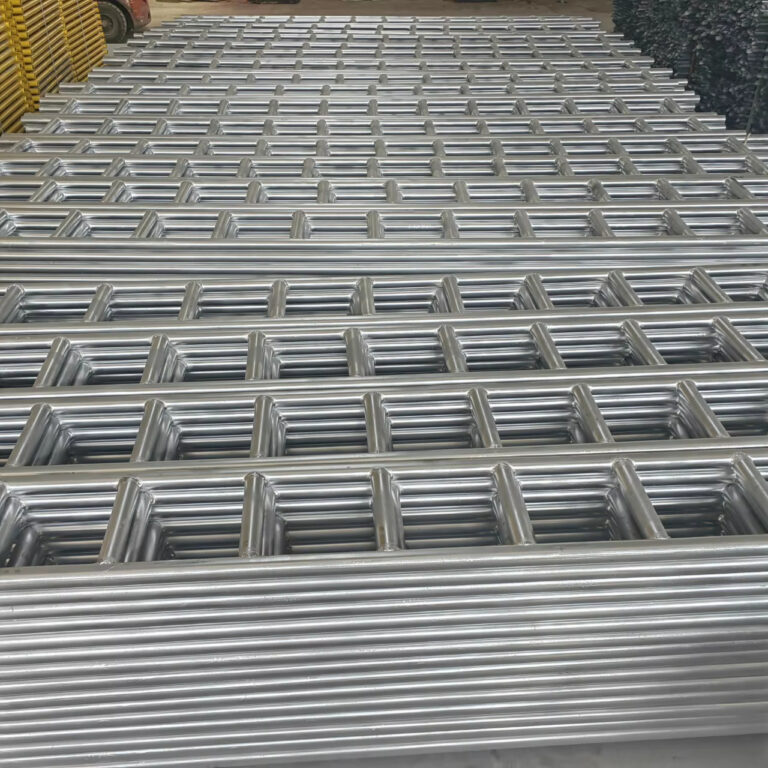

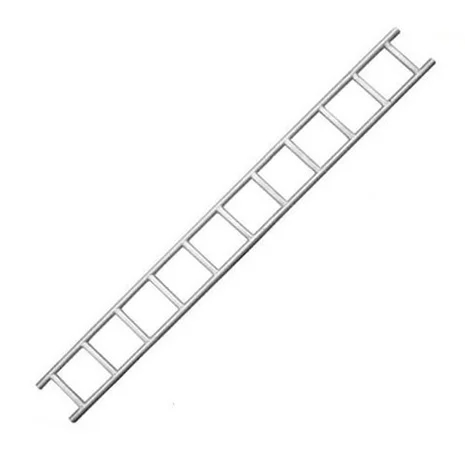

Steel Ladder Beam

Length	Weight
1.8m	21kg
2.4m	28kg
3.0m	35kg
3.9m	45.5kg
4.8m	56kg
6.4m	74kg

Details:

Material: High strength steel Q235 or Q355
Tube Size: 48.3mm×3.2mm or 48.3mm×4mm
Surface: Hot dip galvanized or painted
Width: 250mm, 300mm, 360mm, 450mm, 600mm, can be customized
Length: Up to 21ft, can be customized

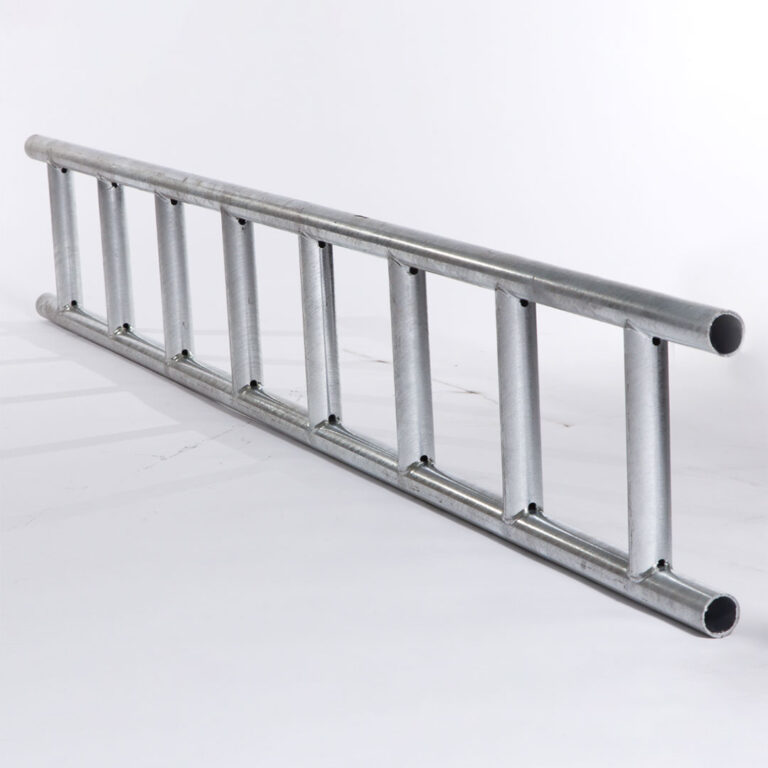

Aluminium Ladder Beam

Width Options	Length Options
160mm, 228mm, 353mm, 450mm	Up to 8000mm (custom length)

Details:

Material: 6082-T6 aluminum
Tube Size: 48.3mm×4.5mm
Width and Length: Can be customized based on your project needs

Why Choose Rapid Ladder Beam Scaffolding

We produce ladder beam scaffolding with high-quality steel or aluminium materials. Hot-dip galvanized or painting surface protect your scaffold from corrosion. Our width and length can be customized to your project requirement. Ladder beam is easy to integrate with other scaffold systems, suitable for tube and clamp scaffolding, ringlock scaffolding and cuplock scaffolding.

Custom Ladder Beam Scaffolding Solutions

Our ladder beam scaffolding can span large distances and provide strong support. It is widely used in building construction, bridge maintenance, industrial project and more. We can give you 3D drawing and material list based on your specific need, ensure the ladder beam scaffold is safe and easy to install.

What is Scaffolding Ladder Beam?

Ladder Beam is a special type of horizontal beam, looks like ladder shape, can span big distance and provide strong temporary or permanent support. It is widely used in scaffolding system as horizontal support, to connect vertical poles and support platform. It can be integrated with other scaffolding parts by clamps, very easy and fast to install and dismantle.

How to use ladder beam?

The 300mm width ladder beam is good for light duty scaffolding or temporary walkway. For heavy duty support or long span, you can use 450mm width or above ladder beam. Ladder beam is a multi-purpose horizontal support part, can be used in many projects like building construction, bridge maintenance and industrial work.

Ladder beam is very flexible and easy to connect with other scaffold systems. It is compatible with many scaffolding systems, including Tube and Clamp Scaffolding, Ringlock Scaffolding and Cuplock Scaffolding. Ladder beam is most common in Tube and Clamp scaffolding because this system can adjust the connection point freely, good for small and complex shape project.

Tube and Clamp: Most flexible, good for non-standard structure, connect by couplers like right angle coupler or swivel coupler.
Ringlock: Good for big and standard project, connect by adapters or special parts to Rosette or use right angle coupler or swivel coupler.
Cuplock: Best for heavy duty work, fast install, use special cuplock connector to fix on vertical pole or use right angle coupler or swivel coupler.
